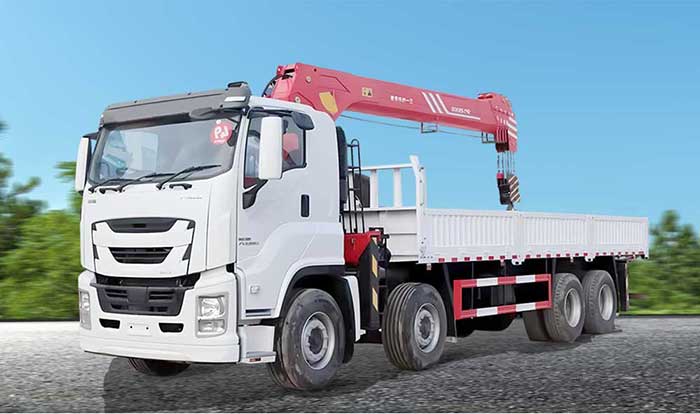

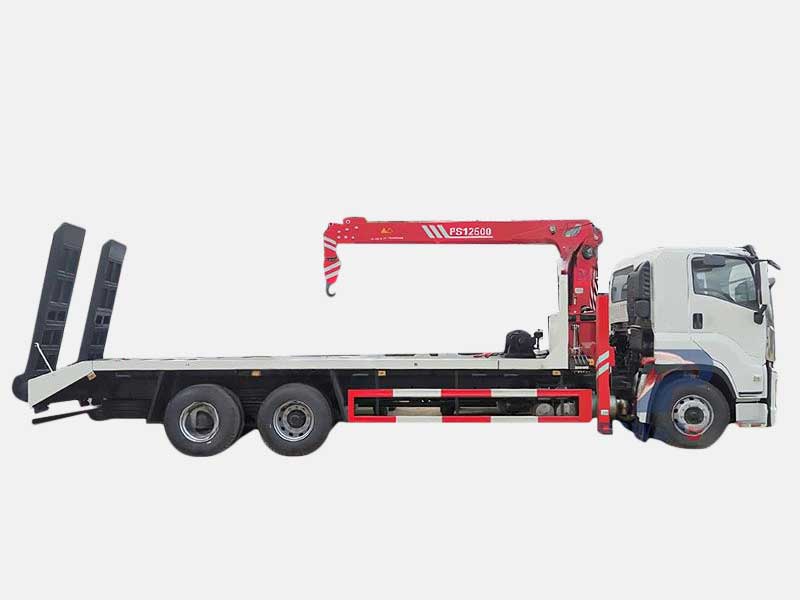

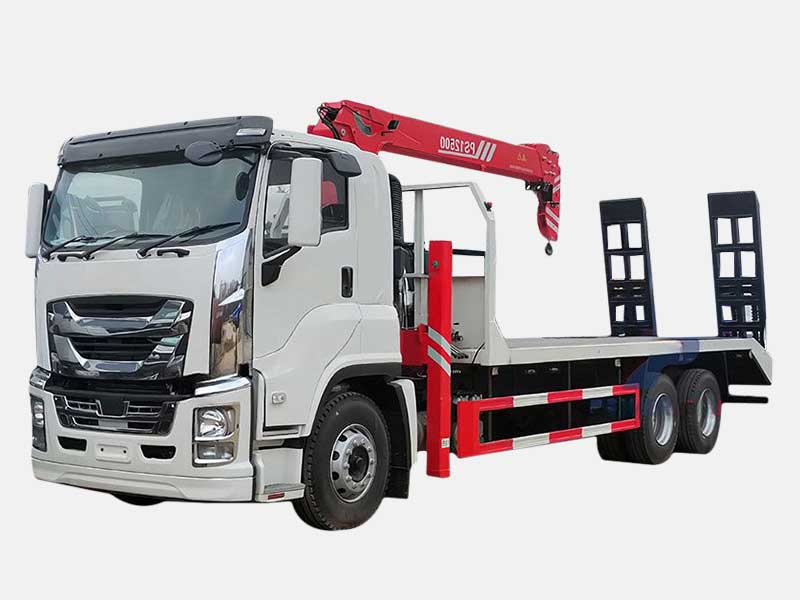

The Crane Truck is a multifunctional special vehicle based on the truck chassis, perfectly combining transportation and lifting functions. Equipped with a hydraulic crane with foldable or telescopic boom, it supports efficient loading and unloading operations and is widely used in construction sites, logistics transportation, landscaping, and municipal engineering.
This model is professionally designed and modified by China Henan Autoking, a well-known domestic special vehicle manufacturer, The vehicle features a rational structure, convenient operation, and high safety, trusted by enterprises and municipal departments at all levels.

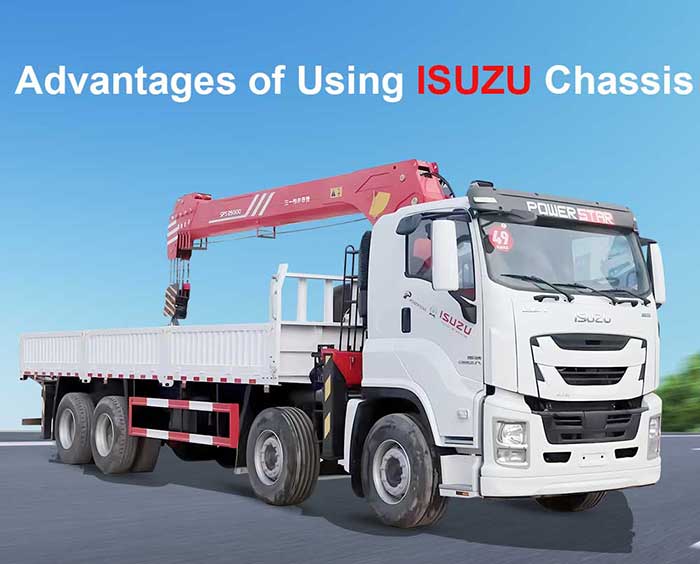

lSUZU commercial vehicle chassis is highly reliable, with a proven power system and strong load capacity, meeting both lifting and transportation needs.
Equipped with original ISUZU engines (e.g., 4KH1/4JB1 series) offering high torque and stable power to easily handle heavy-duty conditions.
Lightweight chassis with high load capacity improves transportation efficiency and reduces fuel consumption.
High-comfort cab, flexible control, and wide visibility suitable for complex urban and construction site conditions.
With its high-quality chassis, mature lifting system, and flexible customization options, the ISUZU truck-mounted crane offers an efficient integrated solution for transportation and loading/unloading. Whether in construction, landscaping, municipal engineering, or logistics, it provides efficient, safe, and reliable operation.
| Chassis Dimensions and Parameters | Overall Dimension(L x W x H) | 11180x2518x3955 mm |
| Wheelbase: | 5820+1370mm | |
| Front/ Rear Wheel Distance: | 2065/1855/1855mm | |
| Front/Rear Suspension | 1370/2590mm | |
| Rear Axle Ratio: | 5.571 | |
| Approach/Departure angle: | 17/18° | |
| Leaf Spring: | 8/10 | |
| Weights and Capacities | Curb Weight: | 12800kg |
| GVW: | 33000kg | |
| Axle Loads: | 7000/26000kg | |
| Engine | Engine Model: | 6UZ1-TCG51 |
| Max output: | 257Kw | |
| Displacement: | 9839ml | |
| Horsepower: | 380Ps | |
| Exhaust Gas Treatment Technology： | SCR | |
| Transmission | Transmission: | ZF8S2030TO |
| Forward Gear: | 8 Speed Gear | |
| Backward Gear: | 1Speed Gear | |
| Brake | Air Brake | |
| Front Drum Back Drum | ||
| With Exhaust Brake | ||
| Generator | 24V-60A | |
| Cab | Cabin Type | Plat Roof Single Sleeper |
| Number of Seats: | 2 | |
| Chassis | Drive Type: | 6x4 |
| Tires: | 11(Including Spare Tire) | |
| Tire Model: | 12R22.5 18PR | |
| Fuel Tank | Number: | 1 |
| Capacity: | 400L | |
| Top Parameters | Max. lifting capacity | 8000Kg |
| Max. pressure of hydraulic system | 27Mpa | |
| Oil tank capacity | 160L | |
| Installation space | 1200mm | |
| Rotation angle | 360 Continuous | |
| Configurations: | 1 | Power Steering |
| 2 | AC | |
| 3 | Tubeless Tire | |
| 4 | ABS | |
| 5 | Free Maintenance Battery | |
| 6 | Central Lock | |
| 7 | Power Window | |
| 8 | Data Recorder | |
| 9 | Air Suspension Cabin | |
| 10 | Air Suspension Seat | |
