| Chassis Dimensions and Parameters | Overall Dimension(L x W x H) | 6777×2170×2550mm |
| Wheelbase: | 3360mm | |
| Front/ Rear Wheel Distance: | 1680/1650mm | |
| Front/Rear Suspension | 1110/1525mm | |
| Rear Axle Ratio: | 4.1 | |
| Approach/Departure angle: | 18/20° | |
| Leaf Spring: | 8/10+6 | |
| Weights and Capacities | Curb Weight: | 6070Kg |
| Payload: | 3800Kg | |
| GVW: | 10000Kg | |
| Axle Loads: | 3350/6650kg | |
| Engine | Engine Model: | 4HK1-TCG40 |
| Max output: | 139Kw | |
| Displacement: | 5193ml | |
| Horsepower: | 189Ps | |
| Exhaust Gas Treatment Technology： | EGR | |
| Transmission | Transmission: | MLD-6Q |
| Forward Gear: | 6 Speed Gear | |
| Backward Gear: | 1 Speed Gear | |
| Brake | Hydraulic Brake | |
| Front Drum Back Drum | ||
| With Exhaust Brake | ||
| Generator | 24V-80A | |
| Cab | Number of Seats: | 3 |
| Chassis | Drive Type: | 4x2 |
| Tires: | 7(Including Spare Tire) | |
| Tire Model: | 235/75R17.5 14PR | |
| Fuel Tank | Number: | 1 |
| Capacity: | 100L | |
| Top Parameters | Garbage Container Capacity | 6m3 |
| Filler Volume | 0.85m3 | |
| Cycling time of Filling | <=12S | |
| Lifting time of Filler | 8-10S | |
| Time of Discharging | <=40S | |
| Hydraulic System Pressure | 18Mpa | |
| Hydraulic system control mode | Manual/electric integrated control | |
| Oil cylinder type | Double-acting piston type | |
| Oil pump | Dual gear pump | |

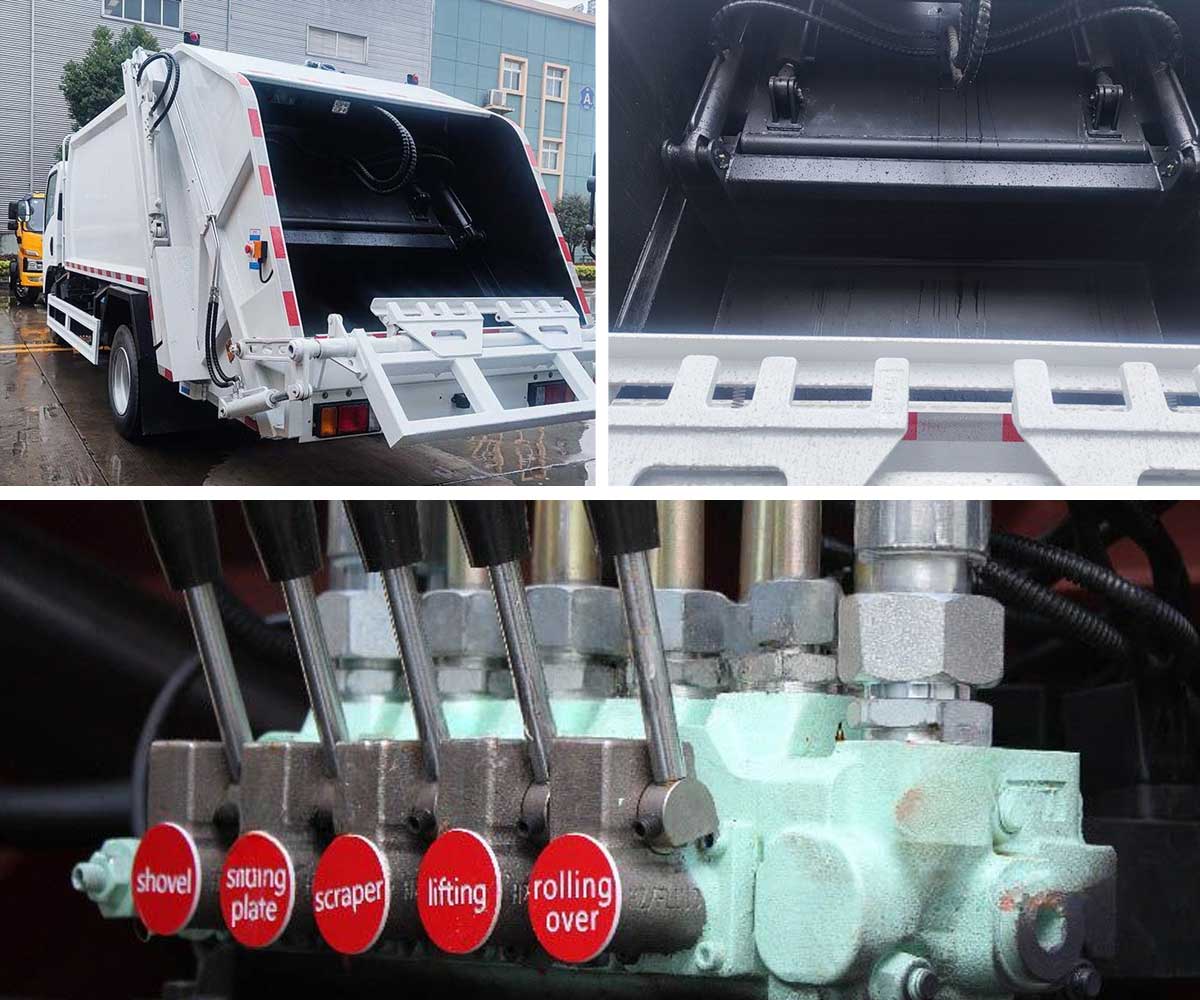

| Directional control valve | Multiple way reversing valve | |
| Manipulator configuration | Standard double barrel manipulator | |
| Configurations: | 1 | Power Steering System |
| 2 | Air Conditioning | |
| 3 | Retro-Reflective Marking | |
| 4 | ABS | |
| 5 | Tubeless Tire | |
| 6 | Free Maintenance Battery | |
