| Model: | QL1030JSGW | QL1030KSGW | QL1030JSHW | QL1030KSHW | QL1030KSGW |
| Drive type: | 2WD | Four-wheel drive | 2WD | Four-wheel drive | 2WD |
| Wheelbase: | 3125mm | 3125mm | 3435mm | 3435mm | 3125mm |
| Front track/rear track: |
Front wheelbase: 1570mm; Rear wheelbase: 1570mmmm |
Front track: 1590mm; Rear track: 1570mmmm |
Front wheelbase: 1570mm; Rear wheelbase: 1570mmmm |
Front wheel track: 1590mm; Rear wheel track: 1570mmmm |
Front wheelbase: 1590mm; Rear wheelbase: 1570mmmm |
| Body length: | 5.355m | 5.355m | 5.655m | 5.655m | 5.355m |
| Body width: | 1.885m | 1.885m | 1.885m | 1.885m | 1.885m |
| Body height: | 1.82m | 1.82m | 1.82m | 1.82m | 1.82m |
| Front overhang/rear overhang: | 0.94/1.29m | 0.94/1.29m | 0.94/1.29m | 0.94/1.29m | 0.94/1.29m |
| Vehicle weight: | 2.005 tons | 2.115 tons | 2.035 tons | 2.14 tons | 2.115 tons |
| Total mass: | 3.13 tons | 3.24 tons | 3.16 tons | 3.265 tons | 3.24 tons |
| Rated load: | 0.8 tons | 0.8 tons | 0.8 tons | 0.8 tons | 0.8 tons |
| Approach angle/departure angle: | 33/26(°) | 33/26(°) | 33/26(°) | 33/26(°) | 33/26(°) |
| Fuel consumption per 100 kilometers: | 8.3L/100km | 8.7L/100km | 8.3L/100km | 8.7L/100km | 8.7L/100km |
| Maximum speed: | 140km/h | 140km/h | 140km/h | 140km/h | 140km/h |
| Engine parameters | |||||
| Engine model: | 4KD1T6S | 4KD1T6S | 4KD1T6S | 4KD1T6S | 4KD1T6S |
| Maximum horsepower: | 150HP | 150HP | 150HP | 150HP | 150HP |
| Maximum output power: | 110kW | 110kW | 110kW | 110kW | 110kW |
| Number of cylinders: | 4 | 4 | 4 | 4 | 4 |
| Fuel type: | Diesel | Diesel | Diesel | Diesel | Diesel |
| Cylinder arrangement: | L | L | L | L | L |
| Displacement: | 2.8L | 2.8L | 2.8L | 2.8L | 2.8L |
| Emission standard: | VI | VI | VI | VI | VI |
| Gearbox parameters | |||||
| Gearbox model: | 5-Speed Manual | 5-Speed Manual | 5-Speed Manual | 5-Speed Manual | 5-Speed Manual |
| Number of gears: | 5-Speed | 5-Speed | 5-Speed | 5-Speed | 5-Speed |
| Shifting type: | Manual | Manual | Manual | Manual | Manual |
| Cargo box parameters | |||||
| Cargo box type: | Dropside | Dropside | Dropside | Dropside | Dropside |
| Cargo box length: | 1.485m | 1.485m | 1.8m | 1.8m | 1.485m |
| Cargo box width: | 1.54m | 1.54m | 1.54m | 1.54m | 1.54m |
| Cargo box height: | 0.48m | 0.48m | 0.48m | 0.48m | 0.48m |
| Cab parameters | |||||
| Number of seats: | Double Rows | Double Rows | Double Rows | Double Rows | Double Rows |
| Number of passengers allowed: | 5人 | 5人 | 5人 | 5人 | 5人 |
| Chassis parameters | |||||
| Chassis structure: | Non-load Bearing | Non-load Bearing | Non-load Bearing | Non-load Bearing | Non-load Bearing |
| Power assist type: | Hydraulic Power Steering | Hydraulic Power Steering | Hydraulic Power Steering | Hydraulic Power Steering | Hydraulic Power Steering |
| Front axle suspension type: | Double Wishbone Independent Suspension | Double Wishbone Independent Suspension | Double Wishbone Independent Suspension | Double Wishbone Independent Suspension | Double Wishbone Independent Suspension |
| Rear axle suspension type: | Leaf Spring Non-independent Suspension | Leaf Spring Non-independent Suspension | Leaf Spring Non-independent Suspension | Leaf Spring Non-independent Suspension | Leaf Spring Non-independent Suspension |
| Aluminum alloy Golden Wheel: | ● | ● | ● | ● | ● |
| Wheel brake | |||||
| Front brake type: | Ventilated disc type | Ventilated disc type | Ventilated disc type | Ventilated disc type | Ventilated disc type |
| Rear brake type: | Disc type | Disc type | Disc type | Disc type | Disc type |
| Front wheel specifications: | 265/60R18 | 265/60R18 | 265/60R18 | 265/60R18 | 265/60R18 |
| Rear wheel specifications: | 265/60R18 | 265/60R18 | 265/60R18 | 265/60R18 | 265/60R18 |
| Safety configuration | |||||
| Driver airbag: | ● | ● | ● | ● | ● |
| Passenger airbag: | ● | ● | ● | ● | ● |
| Seat belt unfastened reminder: | ● | ● | ● | ● | ● |
| In-car central control lock: | ● | ● | ● | ● | ● |
| Remote control key: | ● | ● | ● | ● | ● |
| Control configuration | |||||
| ABS anti-lock: | ● | ● | ● | ● | ● |
| Brake force distribution (EBD/CBC, etc.): | ● | ● | ● | ● | ● |

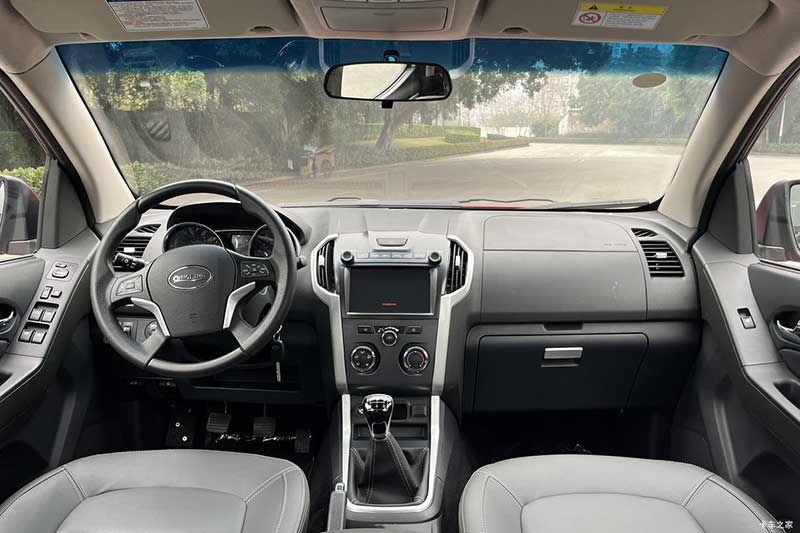

| Internal configuration | |||||
| Steering wheel material: | Plastic | Plastic | Plastic | Plastic | Plastic |
| Steering wheel adjustment: | ● | ● | ● | ● | ● |
| Multi-function steering wheel: | ○ | ○ | ○ | ○ | ○ |
| Seat material: | Imitation Leather | Imitation Leather | Imitation Leather | Imitation Leather | Imitation Leather |
| Seat height adjustment: | ● | ● | ● | ● | ● |
| Air conditioning adjustment form: | Manual | Manual | Manual | Manual | Manual |
| Electric windows: | ● | ● | ● | ● | ● |
| Electric adjustment of rearview mirrors: | ● | ● | ● | ● | ● |
| Reversing image: | ○ | ○ | ○ | ○ | ○ |
| Multimedia configuration | |||||
| Center console color screen: | ○ | ○ | ○ | ○ | ○ |
| External audio source interface (AUX/USB/iPod, etc.): | ● | ● | ● | ● | ● |
| Bluetooth/car phone: | ○ | ○ | ○ | ○ | ○ |
| Lighting configuration | |||||
| Front fog lights: | ● | ● | ● | ● | ● |
| Daytime running lights: | ● | ● | ● | ● | ● |
| Height adjustable headlights: | ● | ● | ● | ● | |
